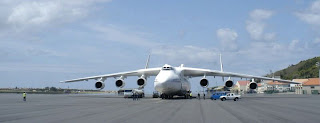

Russian-Antonov 225-The World's Biggest Airplane with 32 wheels designed
Based on Antonov's earlier An-124, the An-225 has fuselage barrel extensions added fore and aft of the wings, which received root extensions to increase span. Two more Ivchenko Progress D-18T turbofan engines were added to the new wing roots, bringing the total to six, and an increased-capacity landing gear system with 32 wheels was designed. The An-124’s rear cargo door and ramp were removed to save weight, and the empennage was changed from a single vertical stabilizer to a twin tail with an oversized horizontal stabilizer.
The twin tail was essential to enable the plane to carry large, heavy external loads that would disturb the aerodynamics of a conventional tail. Unlike the An-124, the An-225 was not intended for tactical airlifting and is not designed for short-field operation.[2]
Initially the 225 had a maximum gross weight of 600 tonnes (1,320,000 lb) but the aircraft was modified in 2000-01, at a cost of US$20M, with a reinforced floor that increased the maximum gross weight to 640 tonnes (1,410,000 lb),[9][10][11]
Both the earlier and later takeoff weights establish the An-225 as the world's heaviest aircraft, being heavier than the double-decker Airbus A380 even though Airbus plans to pass the An-225's maximum landing weight with 591.7 tonnes (1,304,000 lb) for the A380.[12] The Hughes H-4 Hercules, known as the "Spruce Goose", had a greater wingspan and a greater overall height, but was 20% shorter, and due to the materials used in its construction, also lighter.
In addition, the Hercules only flew once and never climbed above 21.3 m (70 ft), making the An-225 the largest aircraft in the world to take off multiple times.[13] The An-225 is not only larger than the Airbus A380 airliner, it is also considerably bigger than the Antonov An-124, Boeing 747 Large Cargo Freighter, and Lockheed C-5 Galaxy, the nearest equivalent heavy cargo aircraft.
